74435582200
Manufacturer:
Wurth Electronics
Mfr.Part #:
74435582200
Datasheet:
Description:

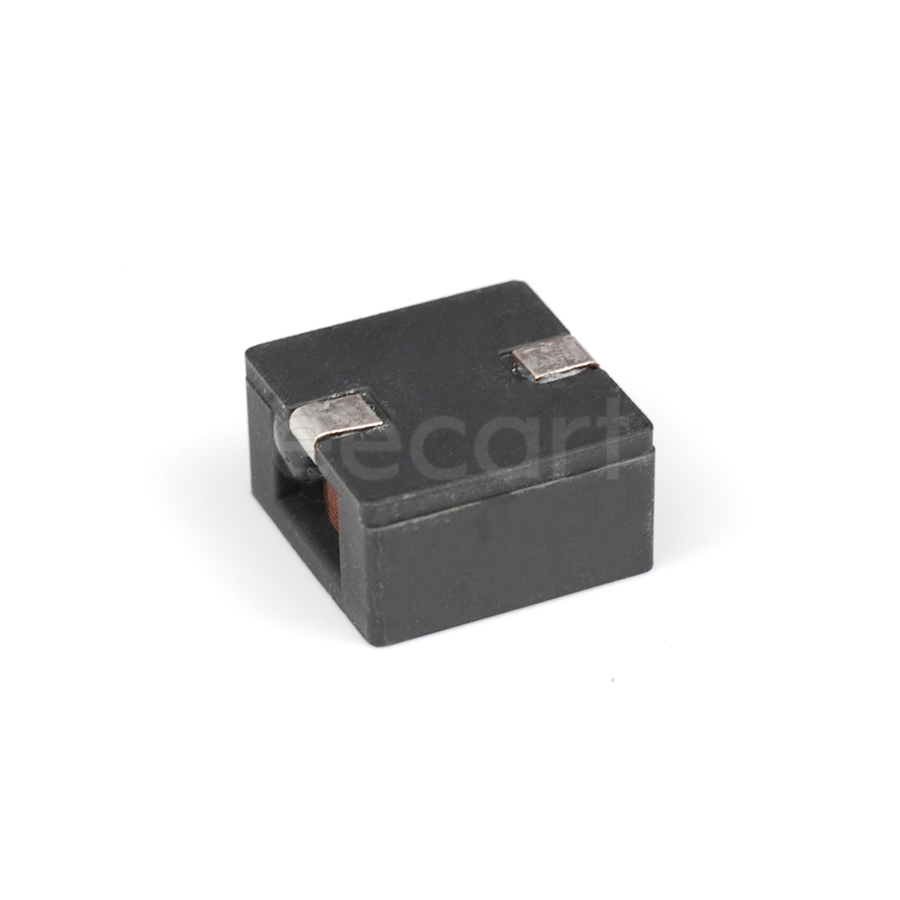

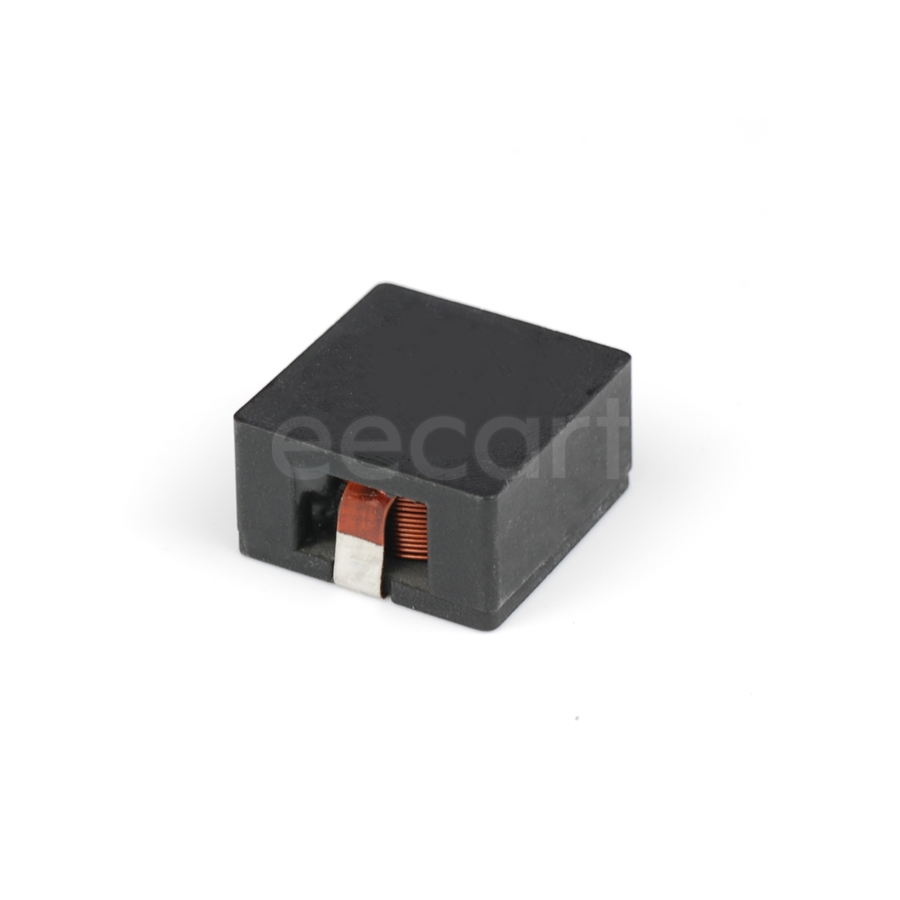

Fixed Inductors 22.50mmL×22.00mmW×12.40mmH SMD/SMT 22 µH 20 % 15 A 7 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 12.4 mm |
| Length | 22.5 mm |
| Width | 22 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Composition(Kit Type) | Wirewound |
| Height | 12 mm |
| Packaging | Reel |
| Depth | 22.5 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Self Resonant Frequency | 8.3 MHz |
| Current Rating | 15 A |
| DC Resistance (DCR) | 7 mΩ |
| Test Frequency | 100 kHz |
| Shielding | Shielded |
| Ambient Temperature Range High | 75 °C |
| Inductance | 22 µH |
| Core Material | Zinc |
| RMS Current (Irms) | 15 A |
| inductance tolerance | 20 % |
| Max DC Current | 15 A |
| Series Resistance | 7.7 mΩ |
| Saturation Current | 18 A |
| Type | Wirewound |
Stock: 1601
Distributors
pcbx
pcbxUnit Price$4.59241
Ext.Price$4.59241
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $4.59241 | $4.59241 |
| 10 | $4.50503 | $45.05030 |
| 25 | $4.23740 | $105.93500 |
| 50 | $3.98568 | $199.28400 |
| 100 | $3.11971 | $311.97100 |
